Mixing in Dolby Atmos Isn’t Just a Technical Step Forward, It’s a Shift in Mindset

Mixing in Dolby Atmos Isn’t Just a Technical Step Forward, It’s a Shift in Mindset

Building a Dolby Atmos mix template inside Create-it Studios’ immersive audio suite.

Inside Studio 5, the air feels calibrated. Eleven monitors curve around the room in a 7.1.4 array, with four more floating above. The moment the session loads, sound stops being flat, it becomes physical. In Dolby Atmos, every mix begins as a blank sphere. The first task isn’t faders or effects; it’s building the world the sound will live in.

Create-it Studios’ Dolby Atmos suite is equipped for professional music mixing and Adam Audio monitoring system, RedNet R1 control, and calibrated room tuning that meets Dolby spec. Yet it’s still only steps away from a Walmart aisle. That’s the idea: professional craft within reach. Here, immersive sound design isn’t locked behind a studio gate. It’s something any creator can explore.

Starting With the Renderer

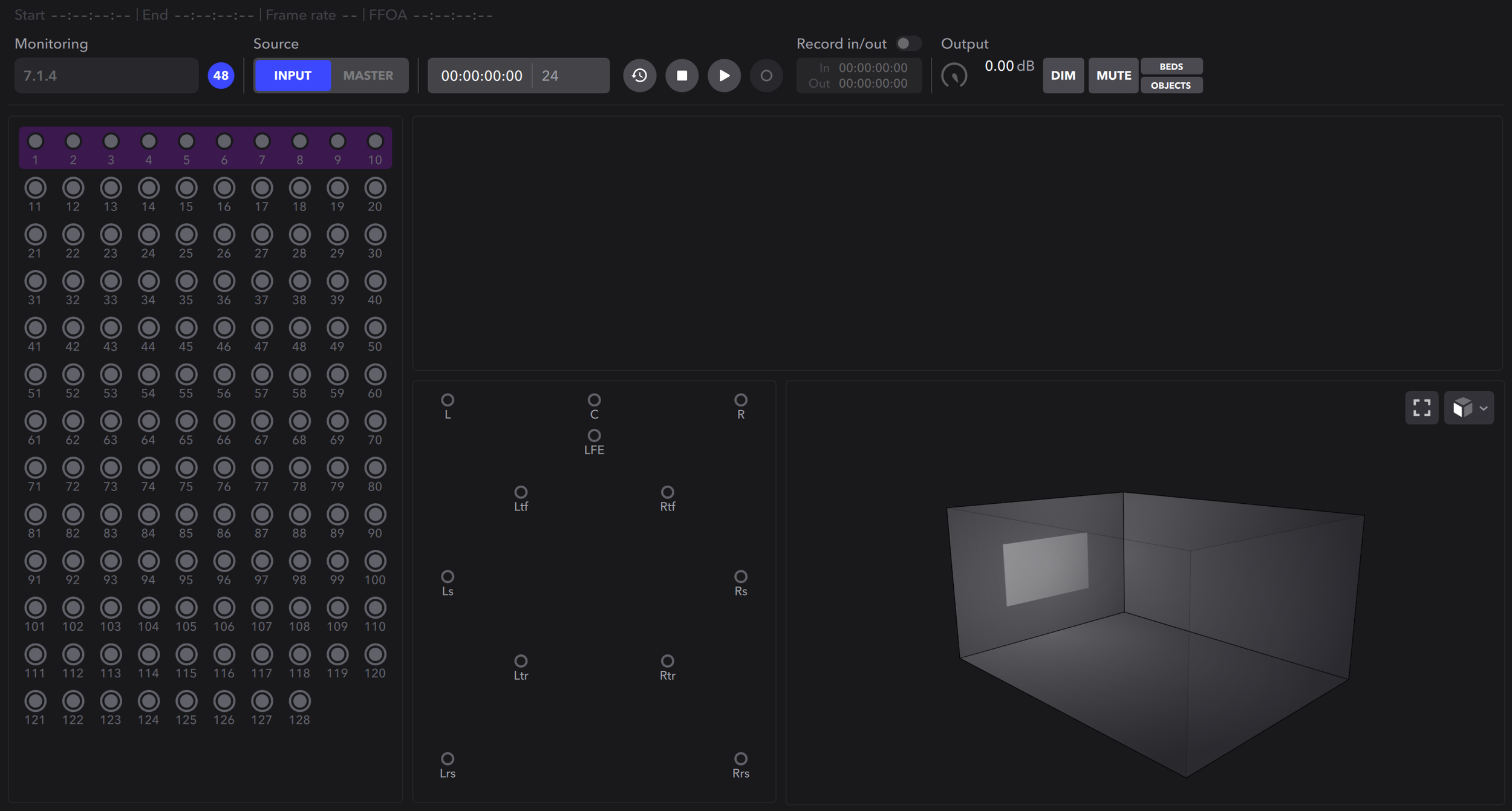

Every Atmos mix begins with the Dolby Renderer, the software that defines the room’s geometry. A session is set at 48 kHz and linked through the Dolby Audio Bridge, creating a live data path between the DAW and the Renderer. From there, two options shape the mix environment:

• Speaker Mode — monitors playback in full spatial detail across the room.
• Headphone Mode — generates a binaural simulation of the same 3D mix for creators working without speakers.

At Create-it Studios, both paths are available, but speaker monitoring remains essential. It’s the moment the mix stops existing as code and starts existing as space.

The Object Bed

Rather than one traditional stereo “mix bus,” an Atmos session begins with an object bed, a network of auxiliary tracks mapped to every speaker location. A typical structure includes: Front (L/R), Center, Sides, Rear, High-Front, and High-Rear.

Each aux is routed to a discrete object in the Renderer and pre-panned to its physical position in the 7.1.4 field. Once established, any track, a vocal, pad, or drum stem, can be instantly assigned to a new space simply by selecting a different output. This architecture makes Atmos intuitive. Instead of “adding reverb to feel wider,” you place the sound, beside, behind, or above.

Sync, Communication, and the Atmos Codec

The Dolby Renderer is more than a monitor, it’s the command center of every Atmos workflow. It receives discrete audio objects from the DAW via the Dolby Audio Bridge, interprets their metadata, and positions them precisely within the virtual sound field. The bridge acts as a translator, carrying both the sound and its coordinates level, panning, and spatial depth into the Renderer in real time.

Two specialized channels help maintain that relationship:

• LTC (Timecode): Keeps both systems locked in perfect sync, ensuring movements and automation remain frame-accurate.
• Binaural Settings: Define how each object translates for headphone playback, applying spatial cues that mimic physical distance and direction.

Crucially, the Renderer is also where the final Atmos codec is created a single master containing both audio and 3D metadata. That deliverable powers distribution on platforms like Apple Music and TIDAL, preserving the immersive intent on calibrated rooms, soundbars, and earbuds alike. The binaural processor offers three spatial depths, Near, Mid, and Far, giving precise control over perceived distance in a two-channel fold-down. It’s not an afterthought; it’s the final stage of translation between the immersive and portable worlds.

Preparing for Stems

An Atmos engineer doesn’t “remix” the artist’s work; they re-space it. The approved stereo master remains the tonal benchmark, imported as a reference to match overall EQ, loudness, and duration.

From there, the session fills with stem tracks for instruments and vocals. Because Atmos has no single mix bus, cohesion comes from consistency. Each stem uses a unified chain:

1. Saturation — subtle harmonic color to match the energy of the stereo master.
2. EQ — frequency balance tuned to the room and reference track.
3. Limiter — dynamic control, side-chained to the stereo reference for uniform response.

These processors are light on CPU but precise in tone, allowing for dozens of linked stems that move as one cohesive mix.

Creative Takeaway

Mixing in Dolby Atmos redefines how music is built. Where stereo balances across a line, Atmos balances within a room. The workflow demands precision, but once the environment is structured, creativity becomes tactile, each sound a point in three-dimensional space, each move a physical gesture inside the mix.

Try It Yourself

1. Create six auxiliary tracks labeled Front, Center, Sides, Rear, High-Front, High-Rear.
2. Route them to unique outputs or virtual objects.
3. Load a tone generator and confirm placement using the Dolby Renderer.
4. Add a reference stereo mix and match your stem tone with light saturation, EQ, and limiting.
5. Switch the Renderer to “Headphone Only” mode to preview the binaural field.

Closing Reflection

The Dolby Atmos room at Create-it Studios isn’t just a technology showcase, it’s an open invitation. Here, immersive audio becomes accessible, understandable, and ready for anyone willing to listen differently. The future of mixing isn’t about volume or loudness. It’s about depth, distance, and the feeling of sound moving freely through air.
